SUPERFLEX PU LR AS DIN 4102-B1

SUPERFLEX PU LR AS DIN 4102-B1

912881

Agriculture Industry Building

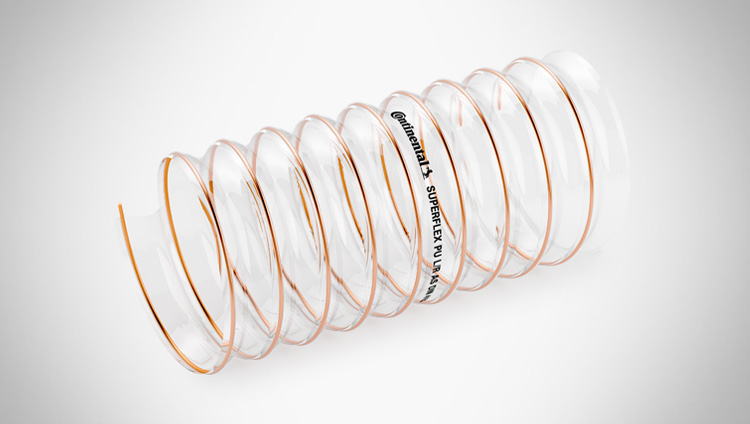

POLYURETHANE hose with galvanised steel spiral, for suction and transport of dust, chips and abrasive material.

Details

Smooth surface

Smooth surface

Flexibility

Flexibility

Abrasion Resistance

Abrasion Resistance

Temperature range

Temperature range

-40 °C 90 °C

Chemical Resistance

Chemical Resistance

PU Table

Crushing Resistance

Crushing Resistance

Ozone Resistance

Ozone Resistance

Flame Retardant

Flame Retardant

According to DIN -4102 IN B1 class

Antistatic

Antistatic

Permanent ≤ 109 recommended life cycle: 2 years

ATEX

ATEX

According to Declaration

Phtalate Free

Phtalate Free

Ø nominal

mm

Ø nominal

inch

Ø i.d.

mm

Ø o.d.

mm

vacuum 23 °C

m/H2O

bending radius

mm

wall thickness

mm

Ø steel wire

mm

spiral pitch

mm

spiral direction

weight meter

g/m

Availability

20 21.5 25.5 0.4 5 0.35 1 9.5 left 100 In stock
25 1 26 30 0.4 6 0.35 1 9.5 left 115 In stock
30 31 35 0.3 7 0.4 1 14 left 120 In stock
32 1 1/4 32.5 36.5 0.28 8 0.4 1 14 left 125 In stock
35 36 40 0.28 8 0.4 1 14 left 140 In stock
38 1 1/2 38.5 42.5 0.25 9 0.4 1 14 left 145 In stock
40 41 45 0.25 10 0.4 1 14 left 150 In stock
45 46 50 0.23 12 0.4 1 14 left 190 In stock
50 2 51 55 0.2 13 0.4 1.2 18 left 185 In stock
55 56 60 0.18 14 0.4 1.2 18 left 200 In stock
60 61 65 0.16 15 0.4 1.2 18 left 220 In stock
63 2 1/2 64 68 0.15 16 0.4 1.2 18 left 230 In stock
70 71 75 0.14 18 0.4 1.4 18 left 330 In stock
76 3 77 81 0.1 19 0.4 1.4 18 left 350 In stock
80 81 85 0.1 20 0.4 1.4 18 left 370 In stock
90 3 1/2 91 95 0.1 22 0.4 1.4 18 left 420 In stock
100 2 102 106 0.09 20 0.4 1.6 23 left 480 In stock
110 112 116 0.09 22 0.4 1.6 23 left 520 In stock
115 117 121 0.09 23 0.4 1.6 23 left 545 In stock
120 122 126 0.09 24 0.4 1.6 23 left 550 In stock
125 5 127 131 0.08 25 0.4 1.6 23 left 590 In stock
130 132 136 0.08 26 0.4 1.6 23 left 610 In stock
140 142 146 0.08 28 0.4 1.6 23 left 660 In stock
150 6 153 158 0.06 30 0.5 1.8 30 left 700 In stock
160 163 168 0.06 32 0.5 1.8 30 left 750 In stock
170 173 178 0.06 34 0.5 1.8 30 left 780 In stock
180 183 188 0.06 36 0.5 1.8 30 left 830 In stock
200 8 203 208 0.05 40 0.5 1.8 30 left 920 In stock
220 223 228 0.05 45 0.5 1.8 30 left 1070 In stock
250 10 254 260 0.04 50 0.6 2 36 left 1250 In stock
280 284 290 0.04 55 0.6 2 36 left 1350 In stock
300 12 304 310 0.03 60 0.6 2 36 left 1500 In stock
315 319 325 0.03 62 0.6 2 36 left 1550 In stock
325 13 329 335 0.03 65 0.6 2 36 left 1600 In stock
350 14 354 360 0.03 70 0.6 2 36 left 1750 In stock
400 16 405 412 0.02 80 0.6 2 36 left 2000 In stock
450 18 455 462 0.01 90 0.6 2 36 left 2300 In stock
500 20 505 512 0.01 100 0.6 2 36 left 2500 In stock
550 22 555 562 0.01 110 0.6 2 36 left 2700 In stock
600 24 605 612 0.01 120 0.6 2 36 left 3000 In stock

All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
